High Voltage Traction Battery 3D model preview
📷Electronics & Gadgets

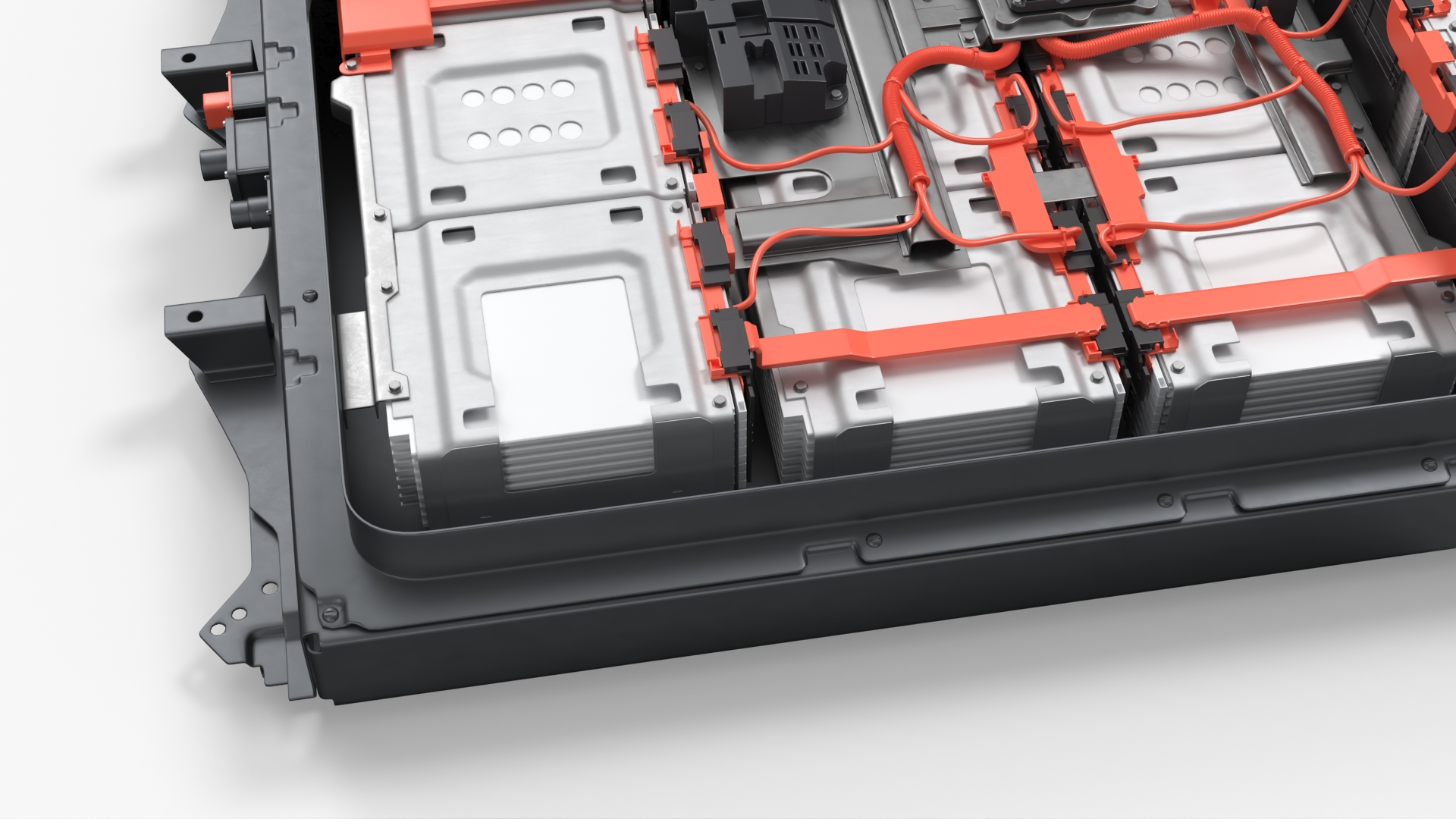

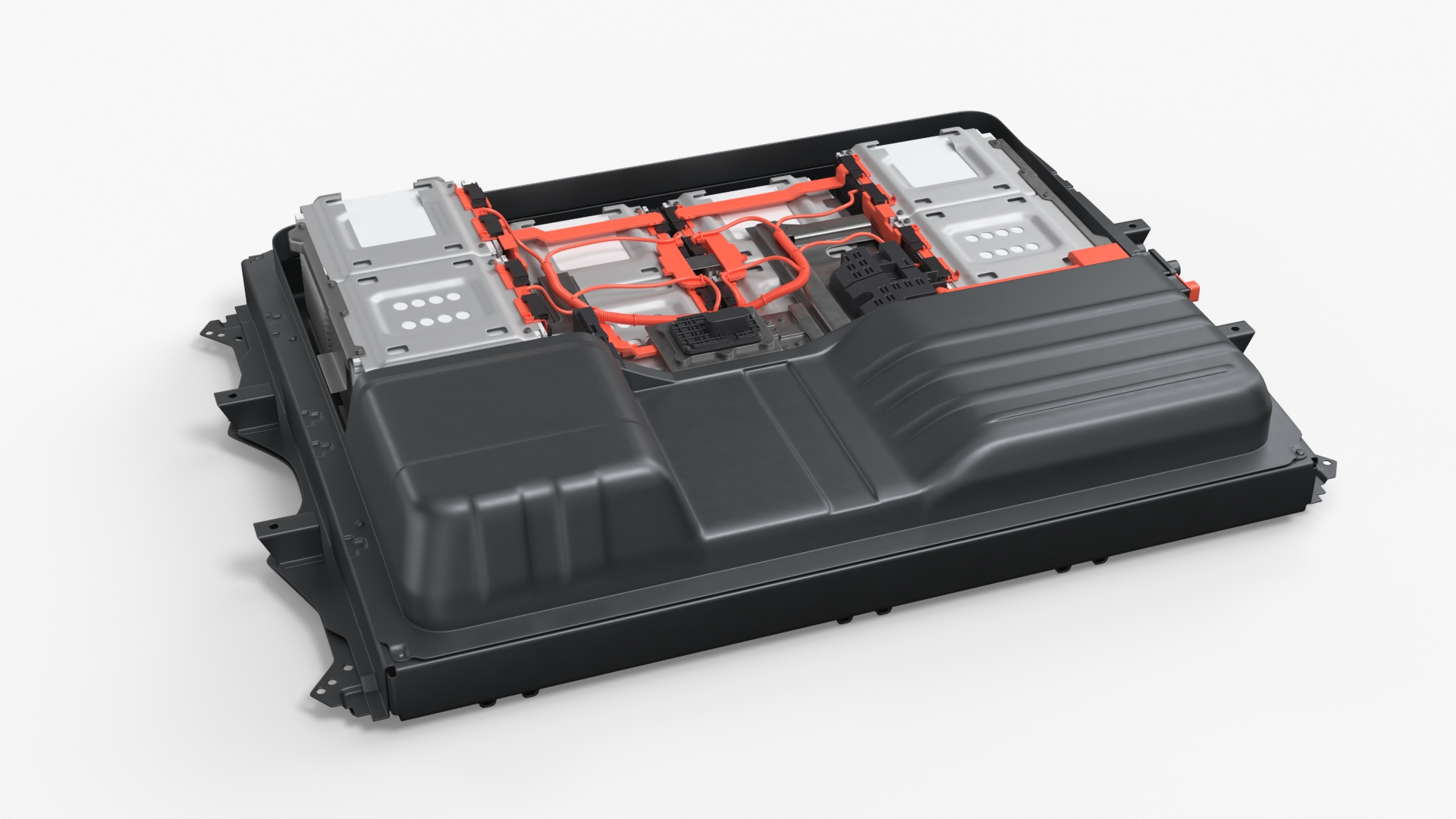

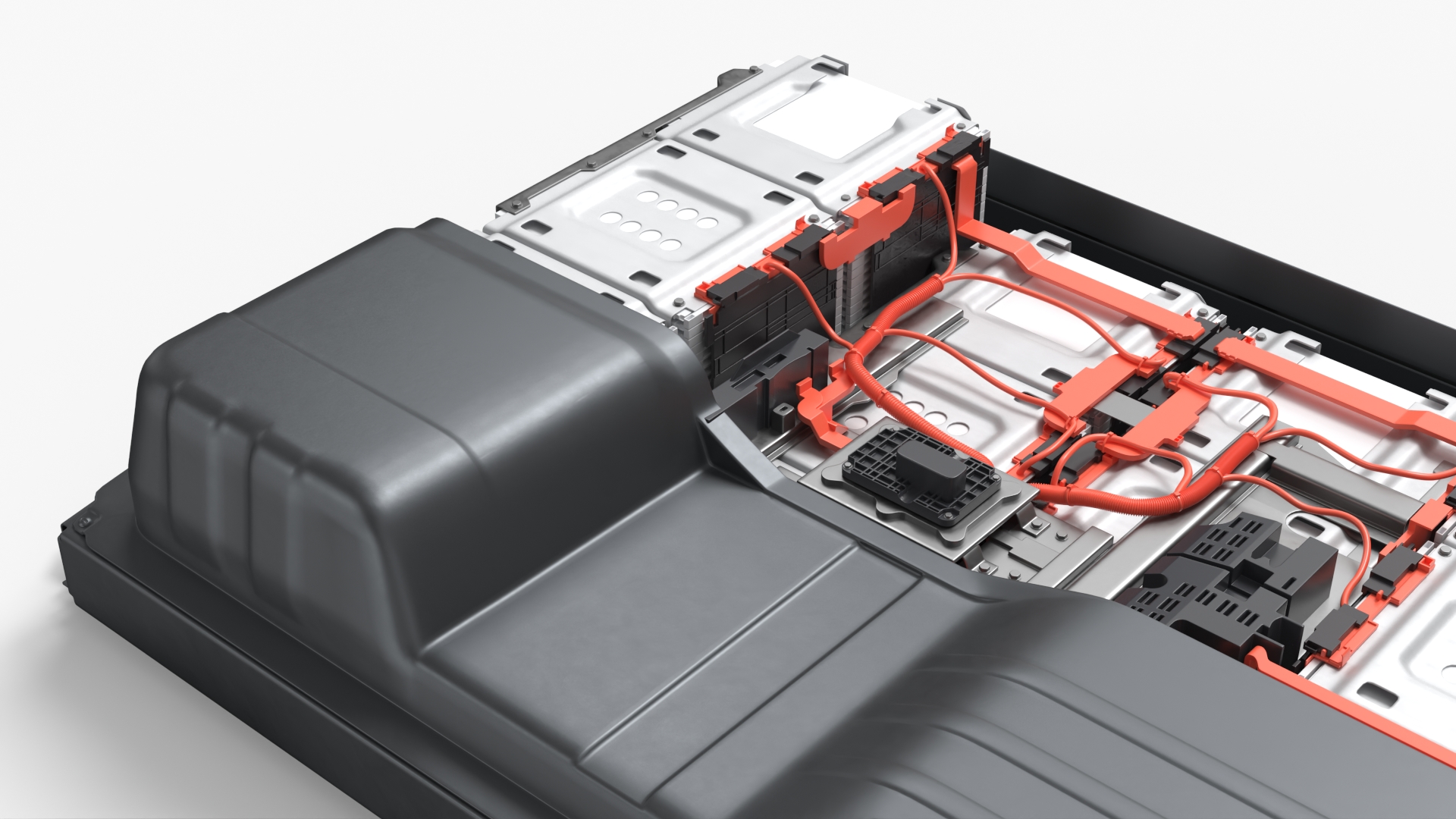

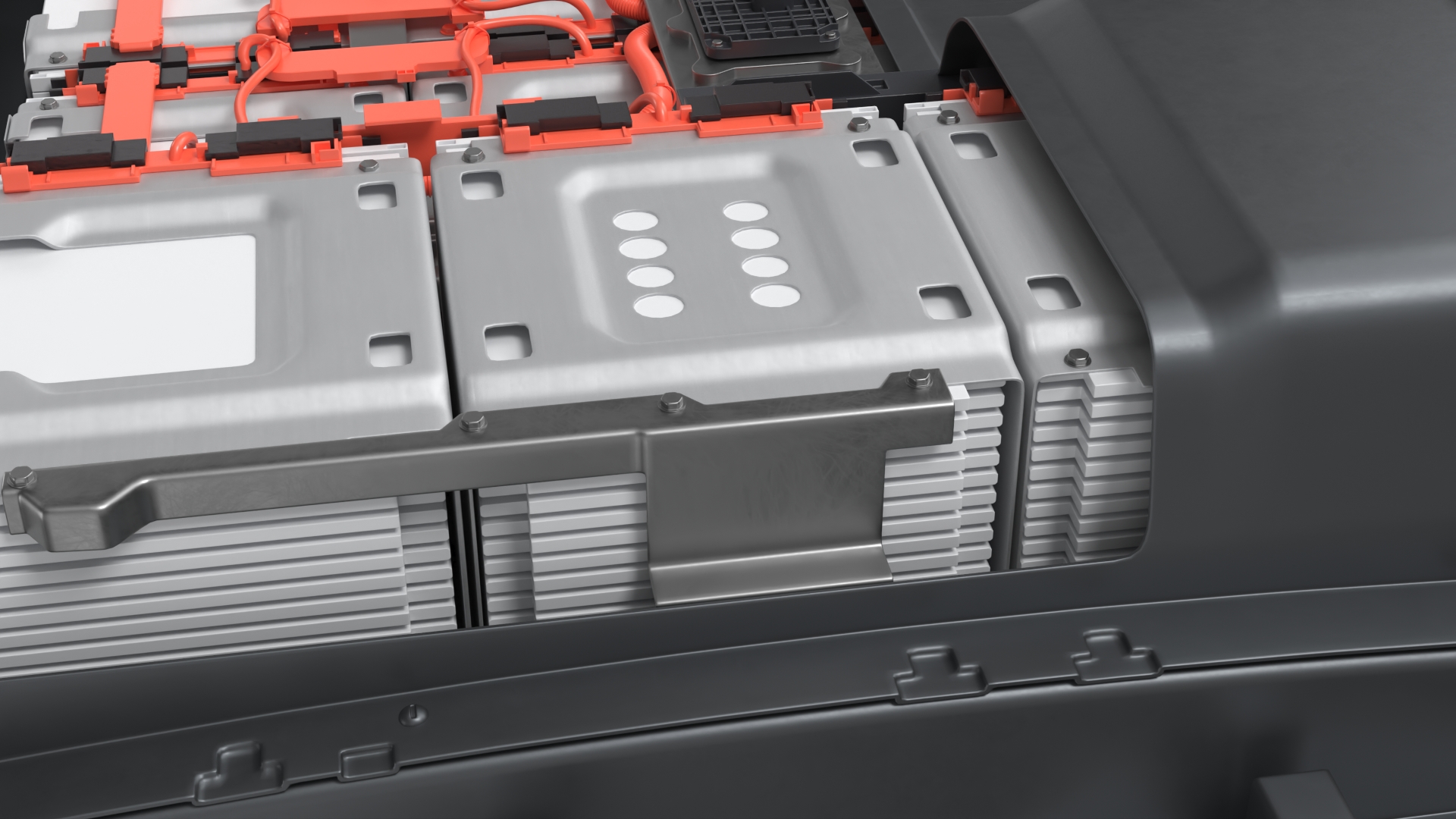

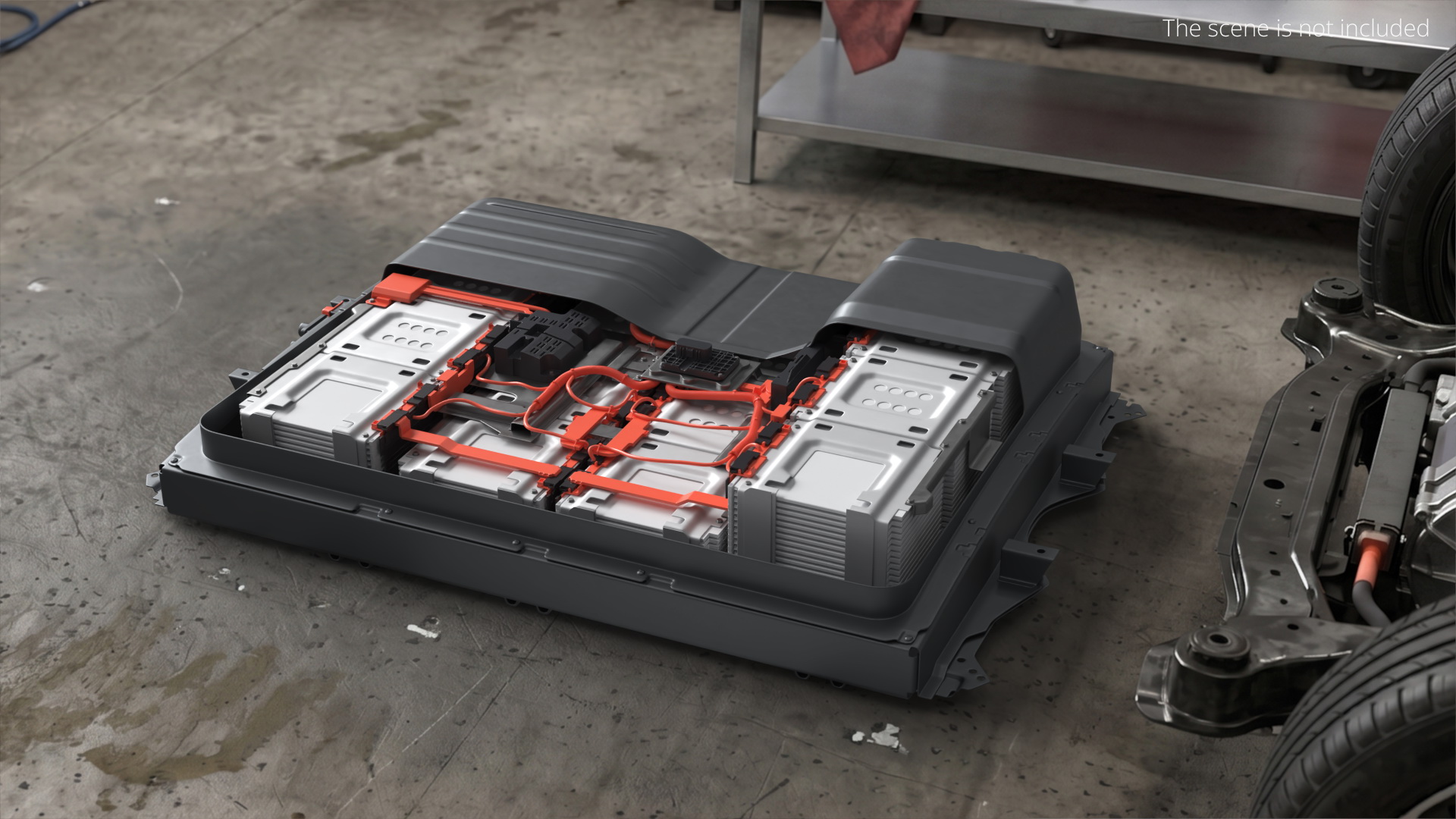

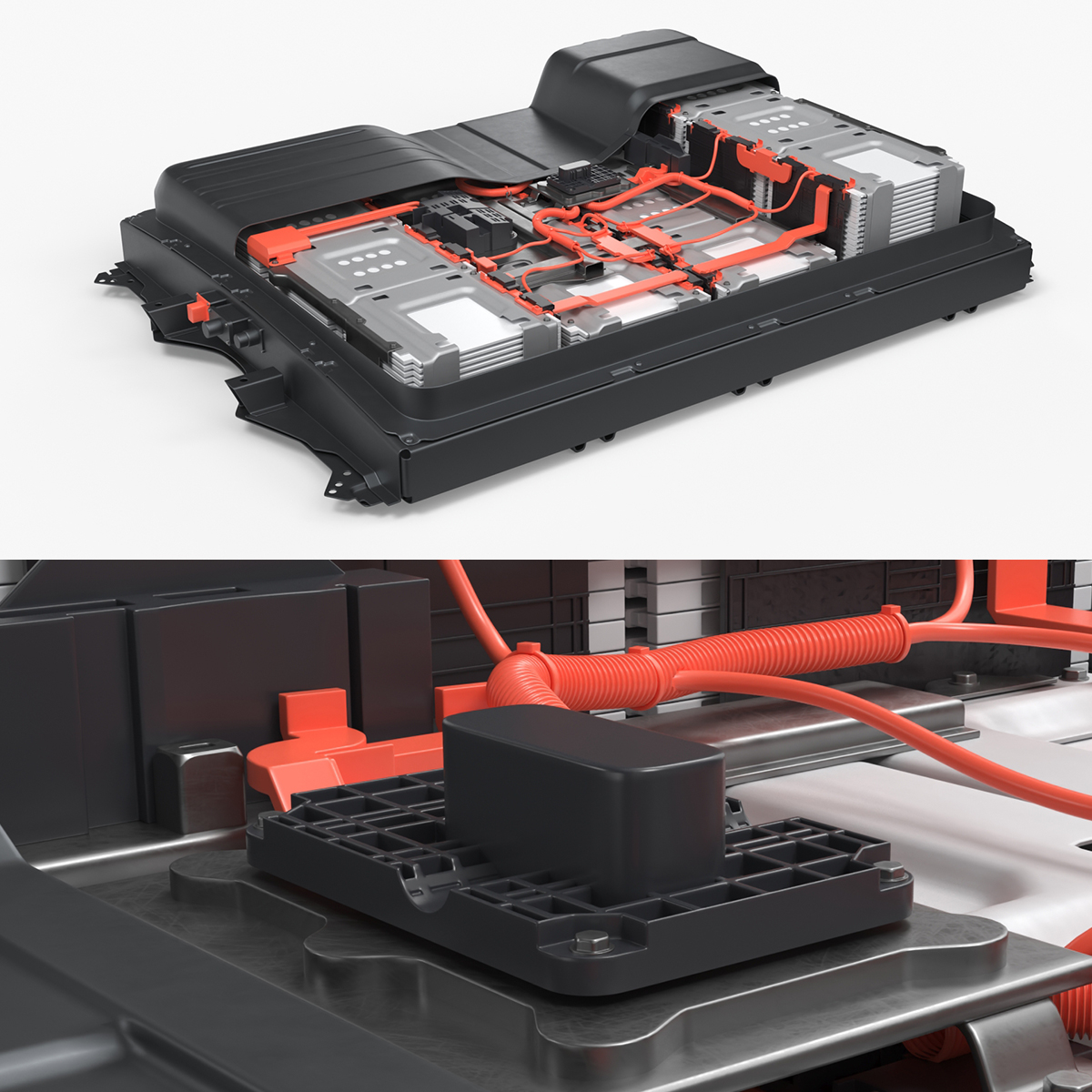

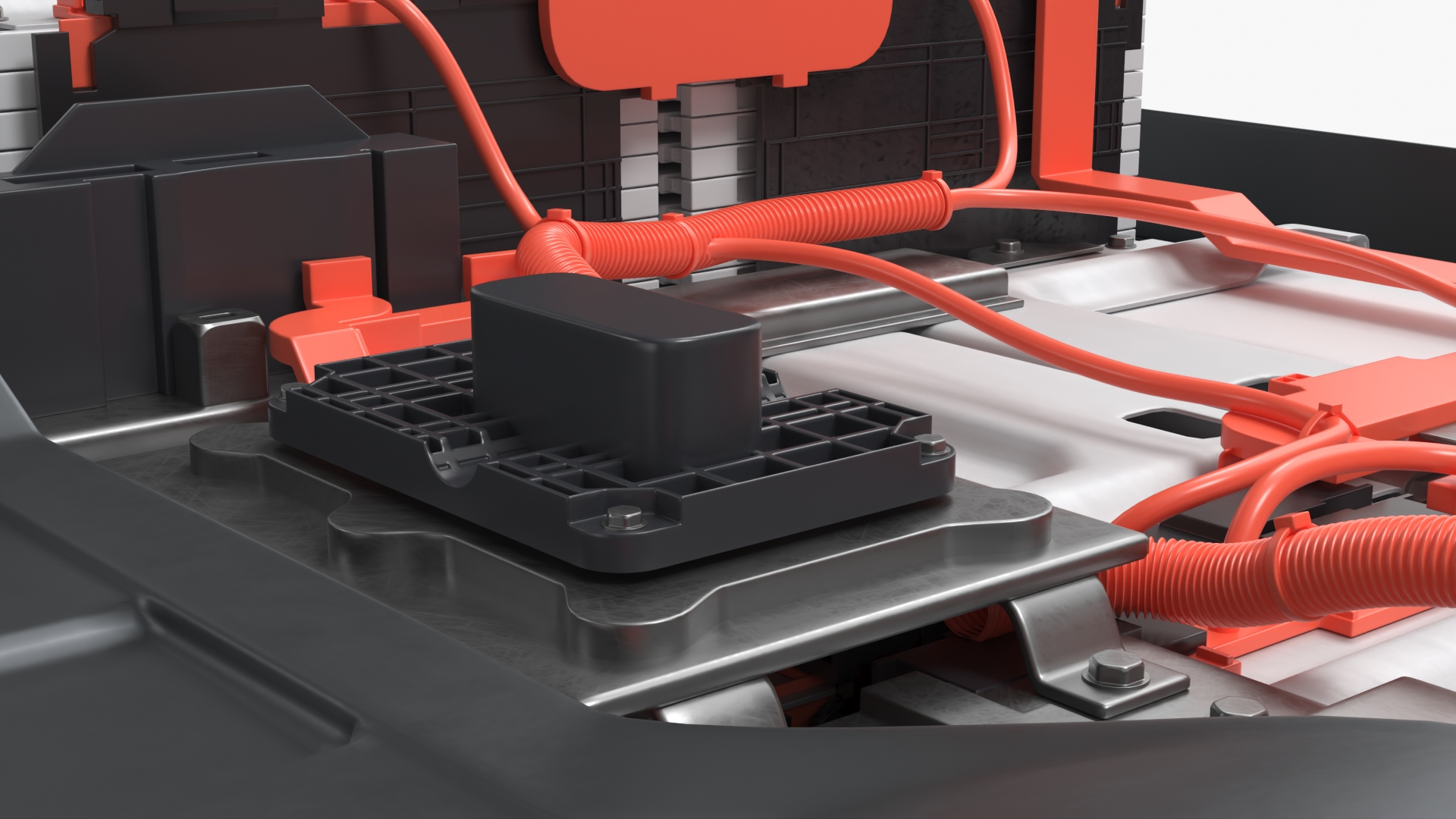

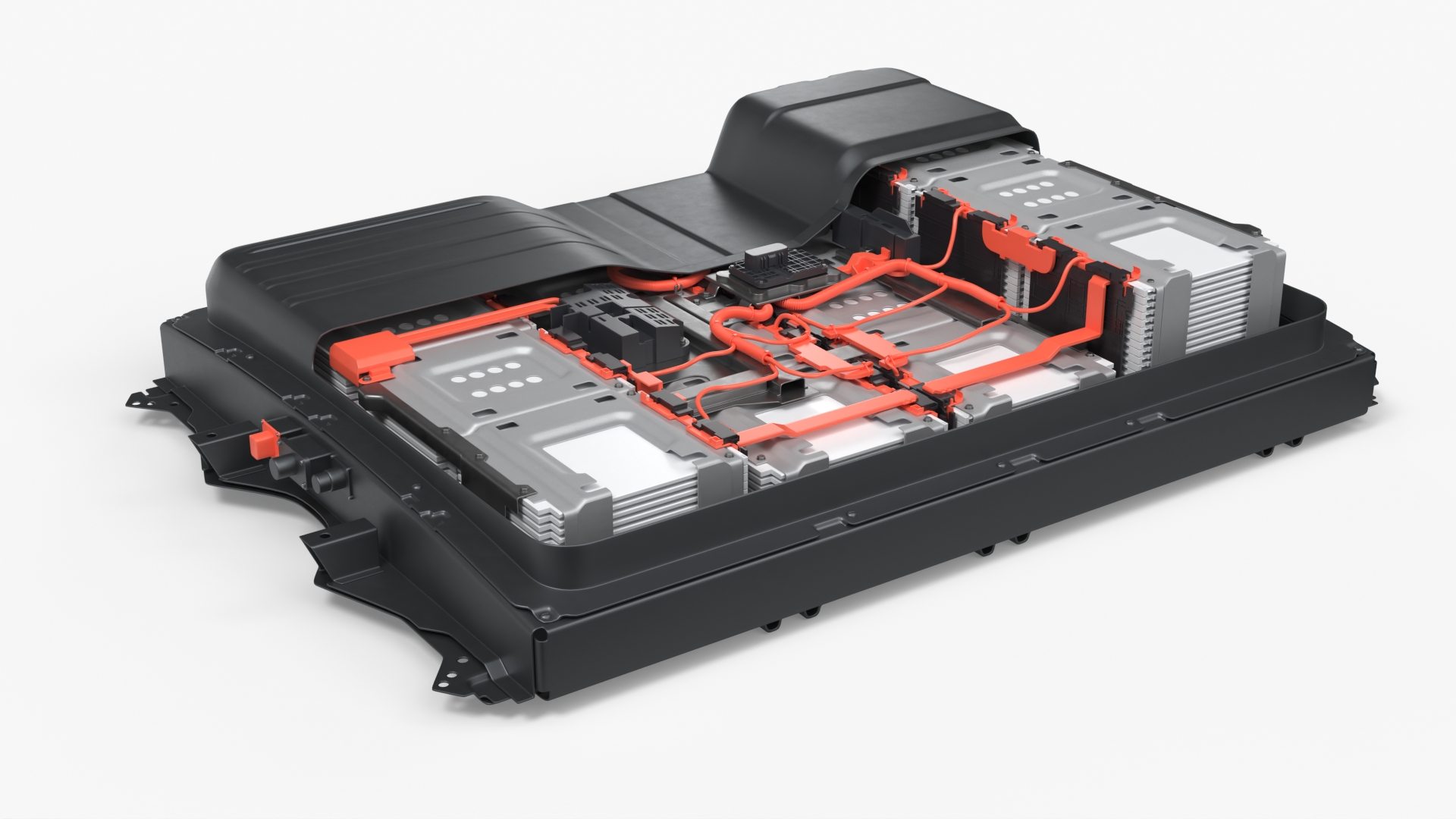

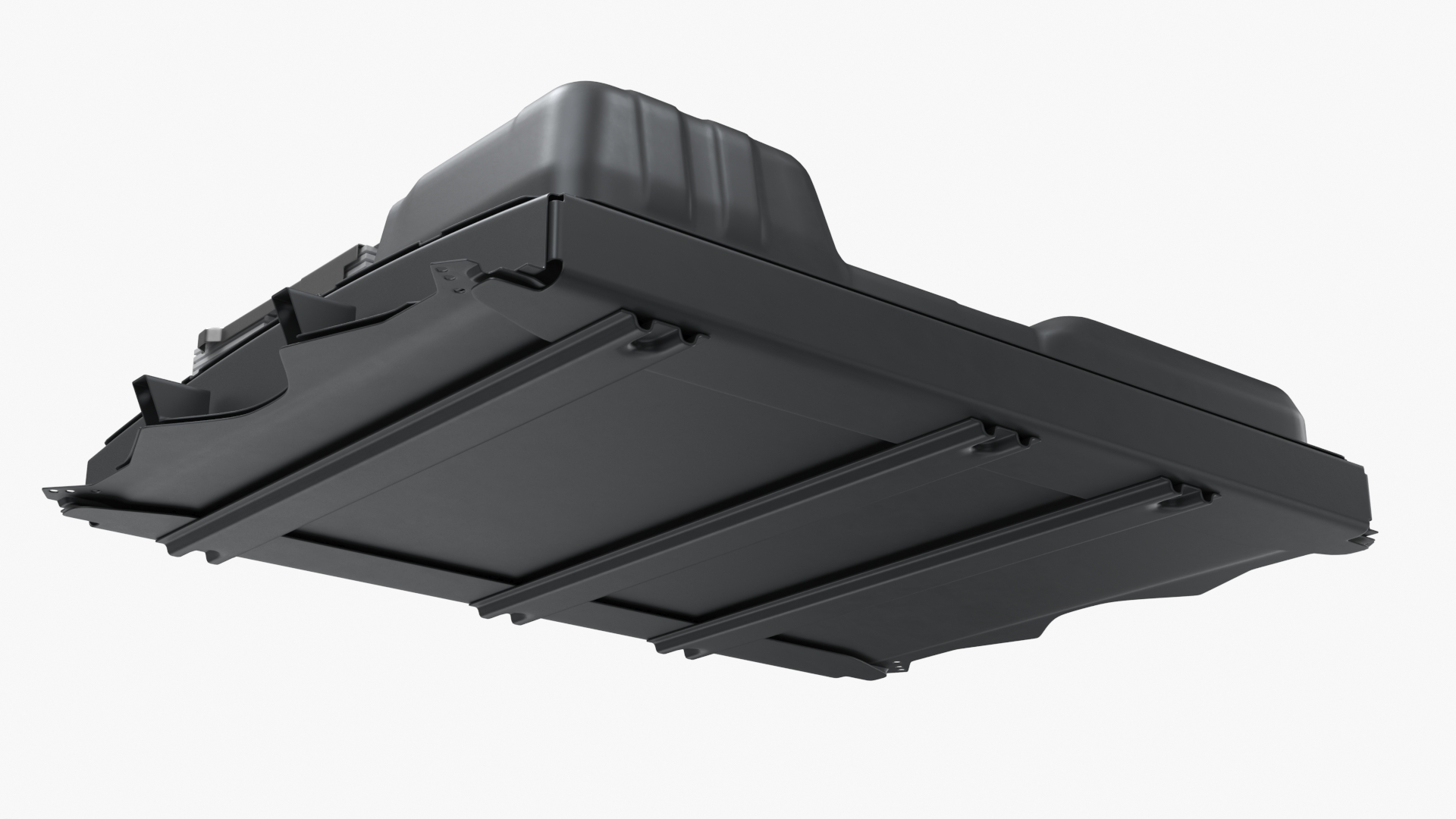

A high voltage traction battery pack for an electric vehicle, the flat lithium tray that sits under the cabin floor. It holds 743,252 polygons and 741,697 vertices, spent on cell modules, busbars, cooling lines and the housing. The pack is low and wide, the skateboard shape that lets carmakers keep the center of gravity close to the road.

Dimensions are 120.54 x 173.78 x H34.0 cm, matching the footprint of a typical passenger EV pack. UVs mix layouts, so review them before adding warning labels, cell numbering or a cutaway color scheme. Built to CheckMate specification, modules and covers are separable for exploded technical views and animations.

Released in 2026, the battery supports EV engineering presentations, technician training and automotive tech explainers. Technical illustrators often explode the modules to show how cells, cooling plates and control electronics fit together. Recycling and energy storage companies use similar visuals to explain second-life battery projects to investors.

By , 3D Molier · Published · Updated

Questions About This Model

Which industries use the High Voltage Traction Battery model?

Hardware and Software Development are the primary industries on this listing, though the Royalty Free license puts no limit on where the model is actually used.

How heavy is the High Voltage Traction Battery mesh?

743,252 polygons and 741,697 vertices, built as polygonal quads/tris. Against a median of about 28,000 polygons across our Electronics & Gadgets models, 743,252 puts this one above the middle of the category.

How clean is the geometry on the High Voltage Traction Battery model?

It is built as an organized scene, not a single welded mesh - parts are separable, named and sized to real-world dimensions.

How much does the High Voltage Traction Battery 3D model cost?

The price is $59 USD. TurboSquid handles payment and delivery; the license is Royalty Free, so the cost does not repeat per use.

Specifications

ModelHigh Voltage Traction Battery
CategoryElectronics & Gadgets
TypeElectrical Accessories
Quality standardBuilt to CheckMate specification
On sale since2026
Real-world scaleYes
Polygons743,252
Vertices741,697
Geometrypolygonal quads/tris
UV mappingMixed
Dimensions120.54 x 173.78 x H34.0 cm

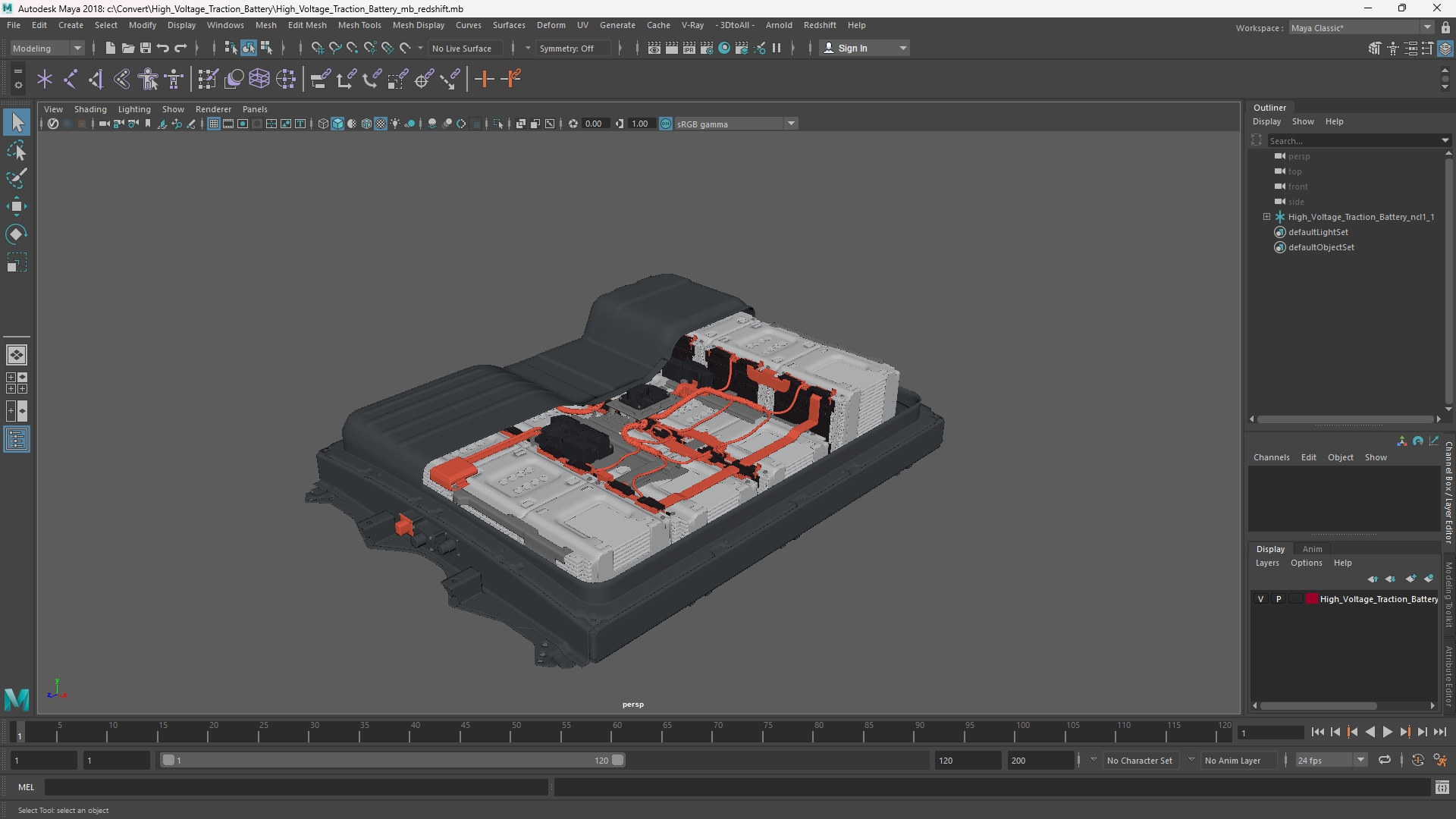

Native3ds Max 2020 + V-Ray 4.3

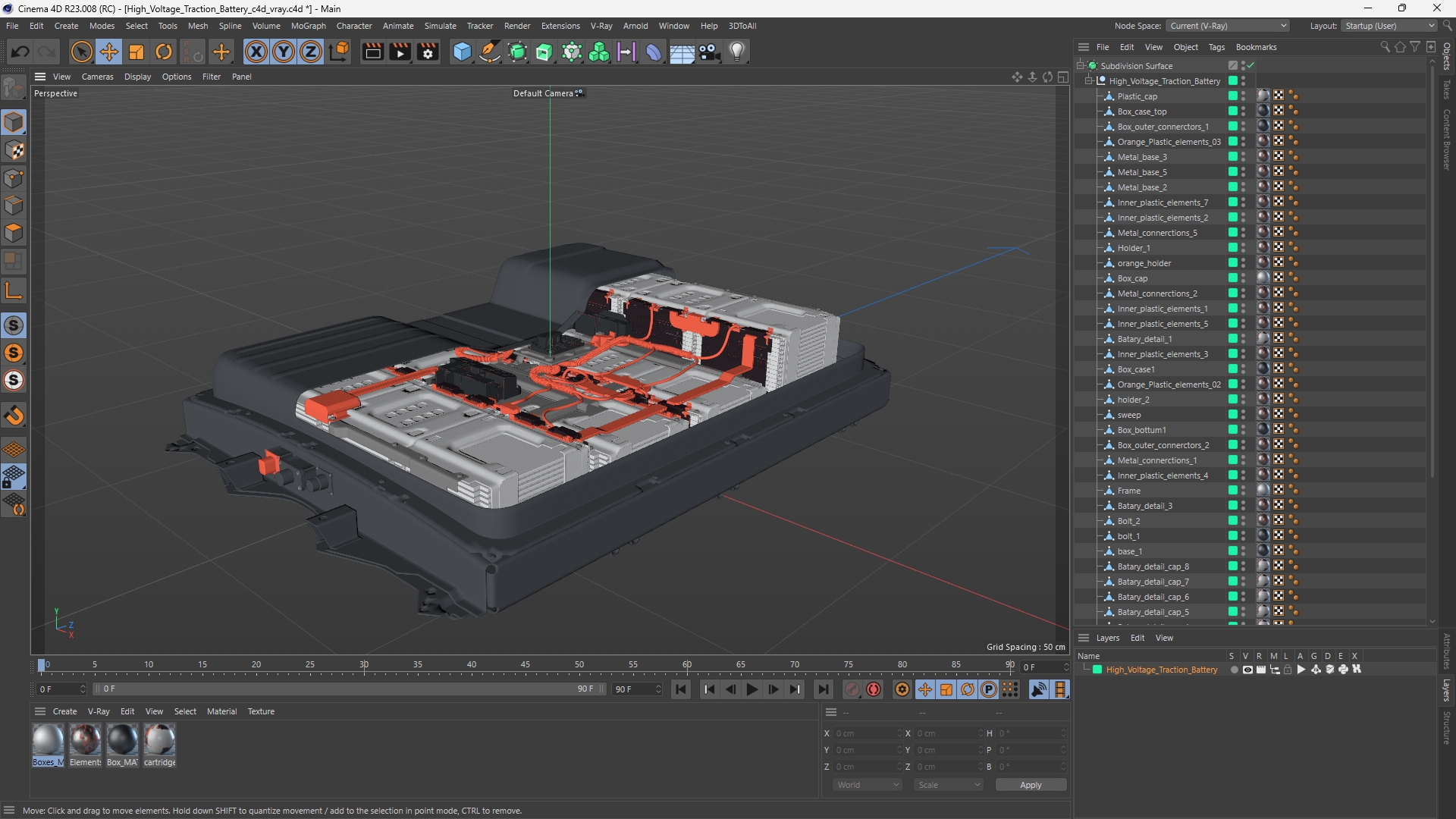

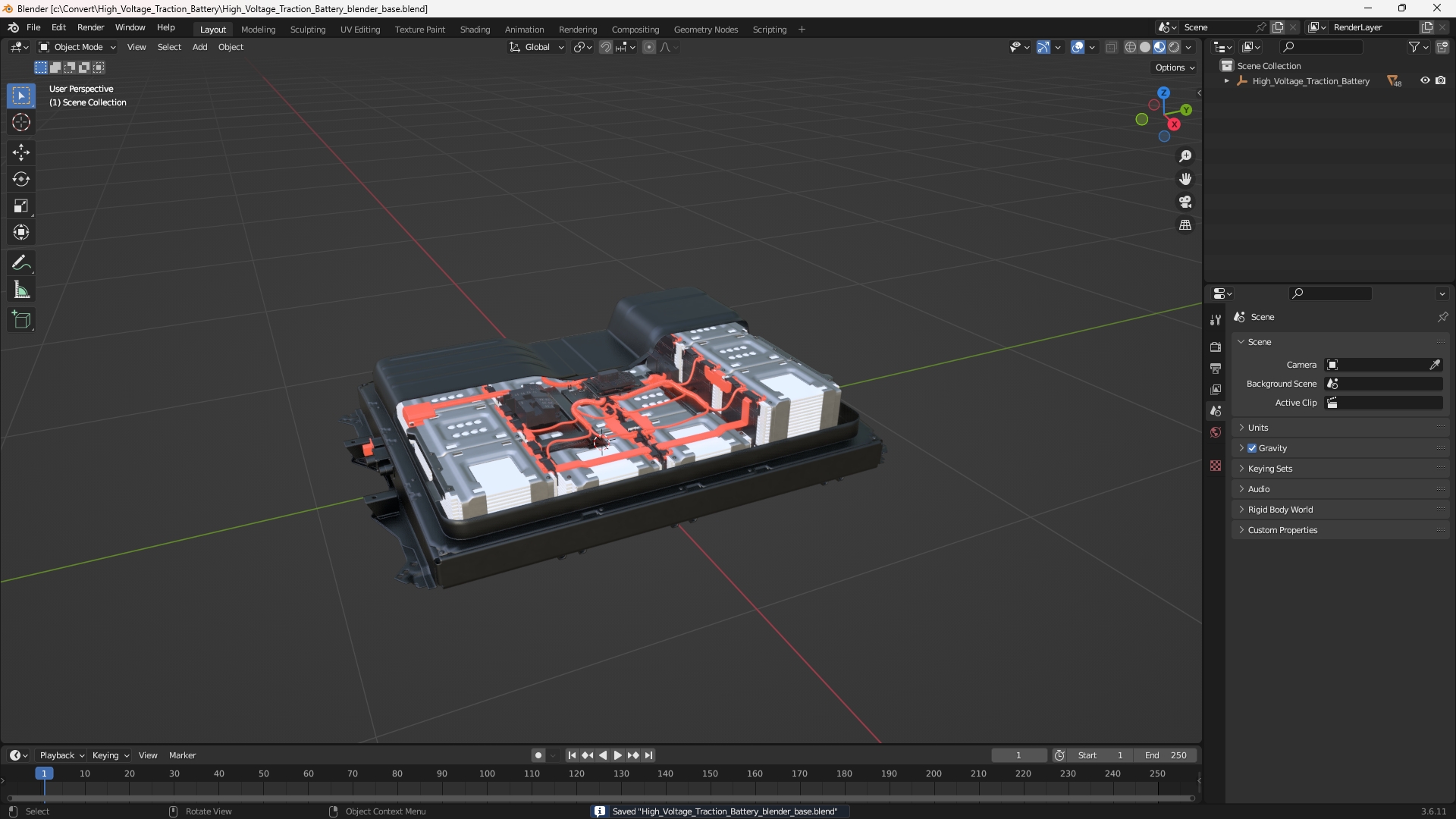

FormatsMAXFBXOBJC4D R23Maya 2022Blender 3.4glTF3DSUSDzUSD 2.0
PBRYes
Current versionStatic
Rigged versionsNot available
LicenseRoyalty Free (TurboSquid)
Price$59 USD
