Turbofan Aircraft Engine CFM International CFM56 Sectioned

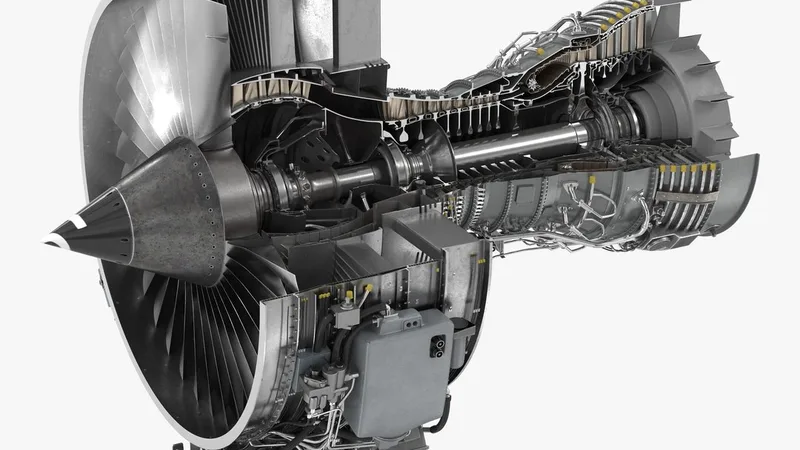

A sectioned high-bypass turbofan that exposes the fan, compressor, combustor and turbine stages for propulsion teaching. The cutaway uses 2,469,165 polygons and 2,618,055 vertices, so blade rows and shafts stay sharp in close camera passes. Part of the casing is peeled away, letting viewers follow the air path from the intake toward the exhaust nozzle.
Each stage reads as a separate layer of metal, which helps an instructor point at one component at a time. The UVs are laid out without overlaps, ready for color coding of hot and cold sections if a lesson needs it. CheckMate Pro certification keeps true engine proportions for a pylon under a wing or a maintenance stand.
A single version is priced at $199, carrying CFM International branding, which limits it to Editorial Uses Only. In use since 2016, it fits aviation school courses, technical documentaries, museum displays and engineering news graphics. Slow dolly moves along the open side show how the fan, compressor and turbine work as one chain.
Questions About This Model
How clean is the geometry on the Turbofan Aircraft Engine CFM International CFM56 Sectioned model?
The mesh uses organized, quad-dominant topology at real-world scale, with objects named and grouped rather than merged into one block.
Where can I buy the Turbofan Aircraft Engine CFM International CFM56 Sectioned 3D model?
It is sold through TurboSquid, where this listing has been available since 2016. Purchase, download and licensing are handled by TurboSquid; delivery is immediate after checkout.
Which industries use the Turbofan Aircraft Engine CFM International CFM56 Sectioned model?
Aerospace, Simulation, Film & Video Production, Game Development and Virtual Reality are the primary industries on this listing. The license, however, is Editorial Uses Only: the model depicts a real branded product, so it may appear in editorial work in those fields, but not in advertising or in products for sale.
What is the Turbofan Aircraft Engine CFM International CFM56 Sectioned model typically used for?
The listing names aerospace visualization, flight simulation and film & TV VFX as the main applications. In practice it also works anywhere a finished aircraft object is needed without modeling it from scratch.
